Solids Separator
Ideal Solutions for Demanding Industrial Applications
Separating Powerfully What Doesn’t Belong Together

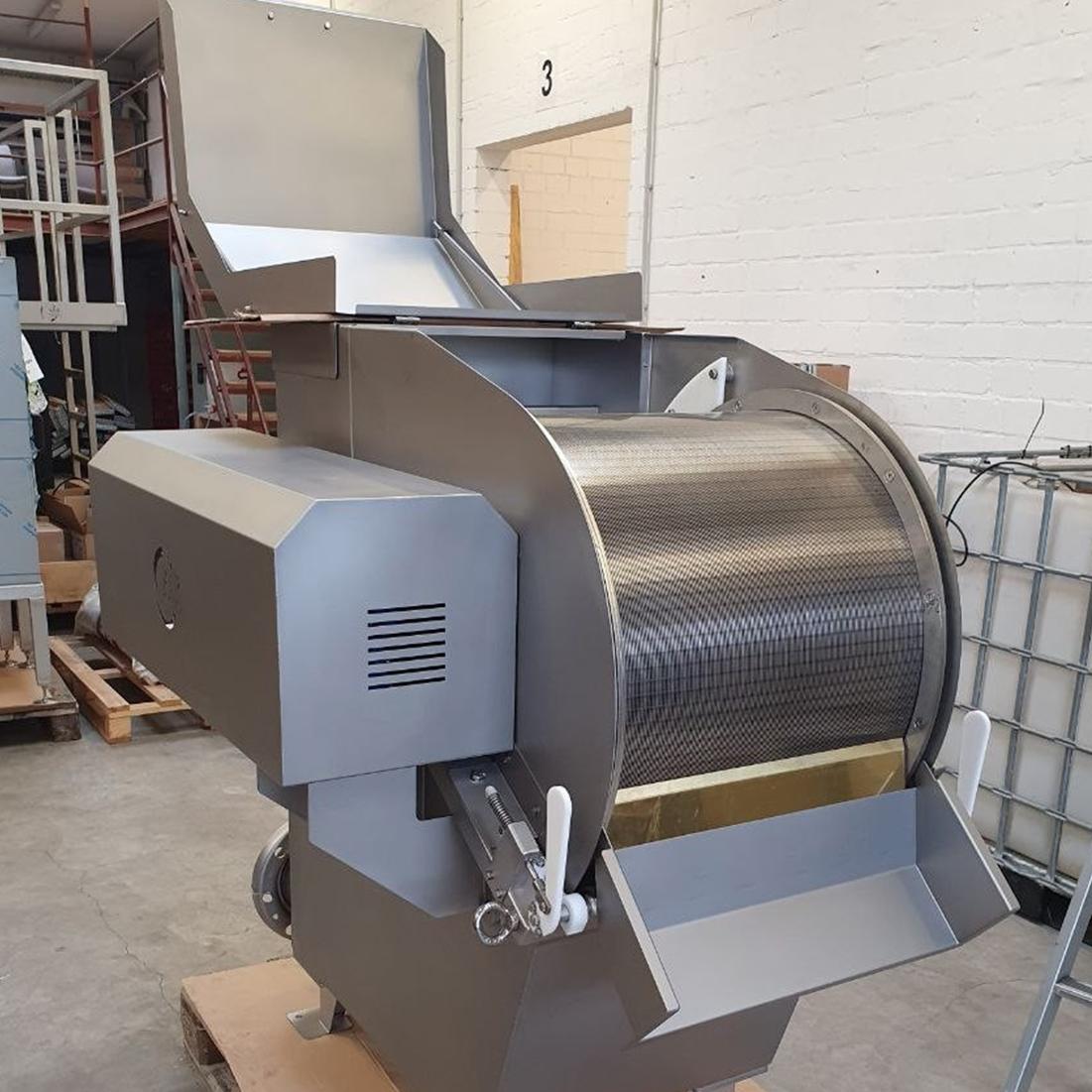

The FLEXBIO-DS Screen Drum is a powerful solution for mechanical wastewater and process water treatment. Constructed from high-quality stainless steel, the system reliably removes suspended solids, fibers, and particulates using a rotating screening system with precisely adjusted mesh openings.
Contaminated water is fed gravimetrically to the rotating drum, where it undergoes efficient filtration — water penetrates through the screen while solids are retained. The robust construction ensures long service life and minimal maintenance requirements.
The FLEXBIO-DS impresses with:
Easy integration capabilities
High throughput performance
Maximum operational safety
Ideal suitability for demanding industrial applications
This system represents an optimal choice for industries requiring reliable and efficient water treatment solutions.
Module Types Overview
Module Type | Flow rate (m³/h) | Nominal Electric Power (kW) | Drum length (mm) | Shipping Size (mm) |
|---|---|---|---|---|
DS40-25 | 7 - 30 | 0.25 | 250 | 700 x 1,200 x 1,000 |
DS40-50 | 14 - 60 | 0.25 | 500 | 950 x 1,200 x 1,000 |
DS40-75 | 20 - 90 | 0.25 | 750 | 1,200 x 1,200 x 1,000 |
DS60-90 | 35 - 152 | 0.55 | 900 | 1,382 x 1,335 x 1,299 |
DS60-120 | 46 - 203 | 0.75 | 1,200 | 1,782 x 1,335 x 1,299 |
DS60-150 | 58 - 254 | 0.75 | 1,500 | 2,082 x 1,335 x 1,299 |
Note: Screen drums made of high-quality stainless steel (AISI 304 or AISI 316) with gear motor (V = 230/400 V, 50/60 Hz, IP65 protection). Standard features include: Integrated level measurement system, Automatic flushing via solenoid valve (2/2-way valve). Optional features: Cover included, Outdoor application capability, Available with screen slots ranging from 0.15 mm to 1 mm, Control panel and control system available as an option. Important: The throughput capacity depends on the selected screen size and the contamination level of the wastewater. This system provides a comprehensive solution for efficient wastewater treatment with customizable options to meet specific application requirements.
Efficient Solids Separation for Industrial and Municipal Applications

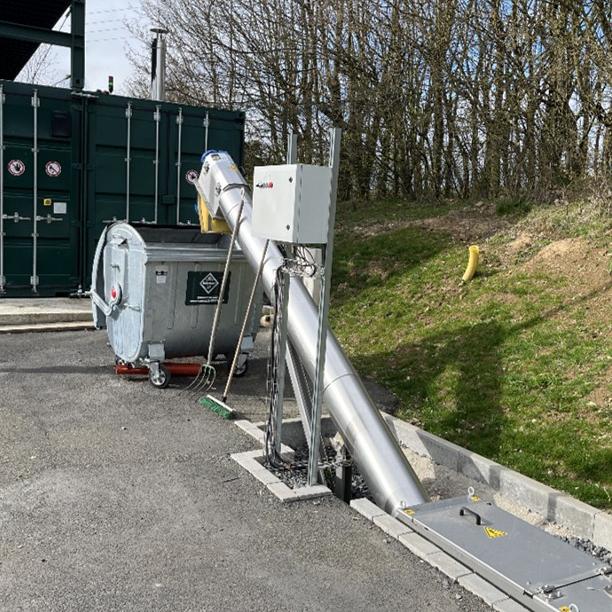

The FLEXBIO-GCEC Screening Screw is a reliable solution for automatic solids removal from industrial and municipal wastewater — ideal for the beverage, food industry, and municipal wastewater treatment plants.
Coarse materials are initially separated via a pre-installed screen. Once a specific fill level is reached, the conveying screw cleans the screen basket with brushes, transports the material upwards, compacts, and dewater it.
The clog-free design ensures safe operation. An optional compactor for additional dewatering is available.
Module Types Overview
Module Type | Max. Flow rate (m³/h) | Nominal Electric Power (kW) | Shipping Size (mm) |
|---|---|---|---|
GCEC-300 | 20 - 50 | 1.1 | 3,305 x 480 x 2,290 |
GCEC-400 | 30 - 60 | 1.1 | 3,305 x 580 x 2,290 |
GCEC-500 | 50 - 80 | 1.1 | 3,305 x 680 x 2,300 |
GCEC-600 | 60 - 100 | 1.1 | 3,415 x 780 x 2,380 |
GCEC-700 | 70 - 120 | 1.1 | 3,830 x 880 x 2,685 |
Note: The flow rate depends on the screen width and the solids content. Flange sizes, screen basket type (V-wire or round hole) and mesh size (0.5–10 mm) are selectable according to requirements. Suitable for outdoor installation; optional additional heating as well as control panel and control system are available.
Efficient Solid-Liquid Separation for Industrial and Agricultural Applications

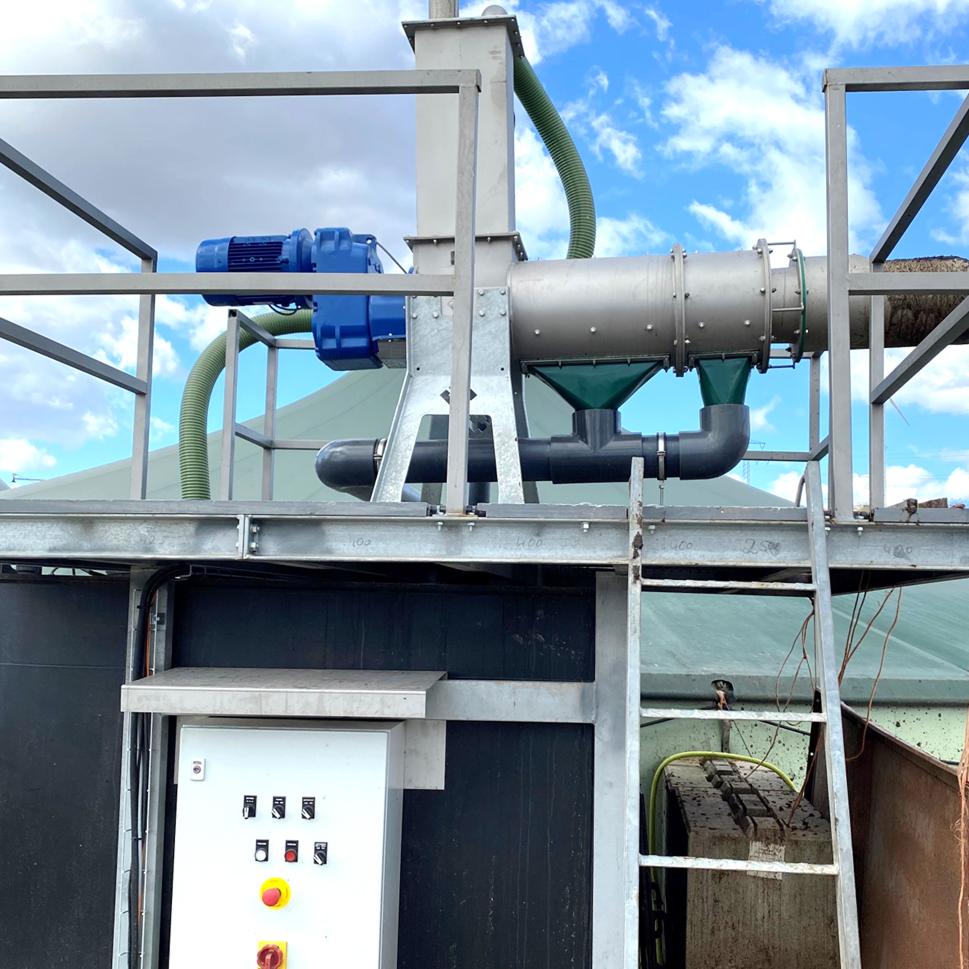

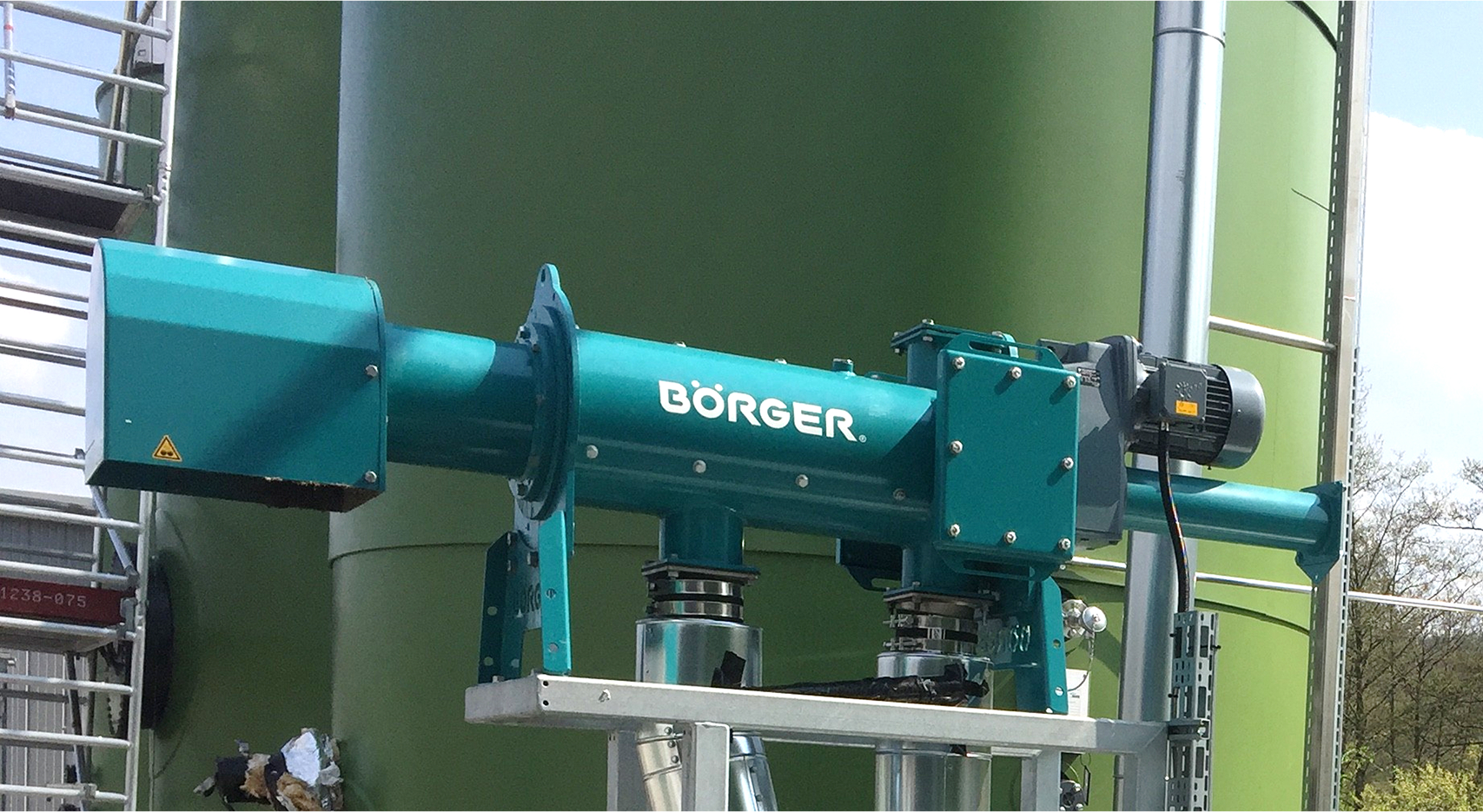

FlexBio Separators ensure reliable and resource-efficient separation of solids and liquids — a crucial process step in wastewater treatment, digestion residue treatment, and processing of organic residues.
Our systems are specifically designed for demanding applications in industry and agriculture, enabling significant reduction of disposal costs.
The separator can be ideally integrated into existing process chains and is compatible with biological or anaerobic purification processes from FlexBio.
Module Types Overview
Module Type | Flow rate (m³/h) | Nominal Electric Power (kW) | Shipping Size (mm) |
|---|---|---|---|
H1-150-1 | 5-10 | 2.2 | 660 x 1,200 x 1,800 |
H1-260-1 | 10-25 | 4.0 | 980 x 1,930 x 2,770 |
H1-260-3 | 20-30 | 5.5 | 980 x 2,230 x 2,770 |
Note: The flow rate depends on the screen size and the solids content. The screen basket (V-wire) with slot widths (0.25–0.9 mm) is selectable according to requirements. Suitable for outdoor installation; optional additional heating as well as control panel and control system are available.
