Anaerobic Fixed-Bed Reactor
Smart, Efficient Wastewater Treatment – Tailored for a Wide Range of Industrial Applications

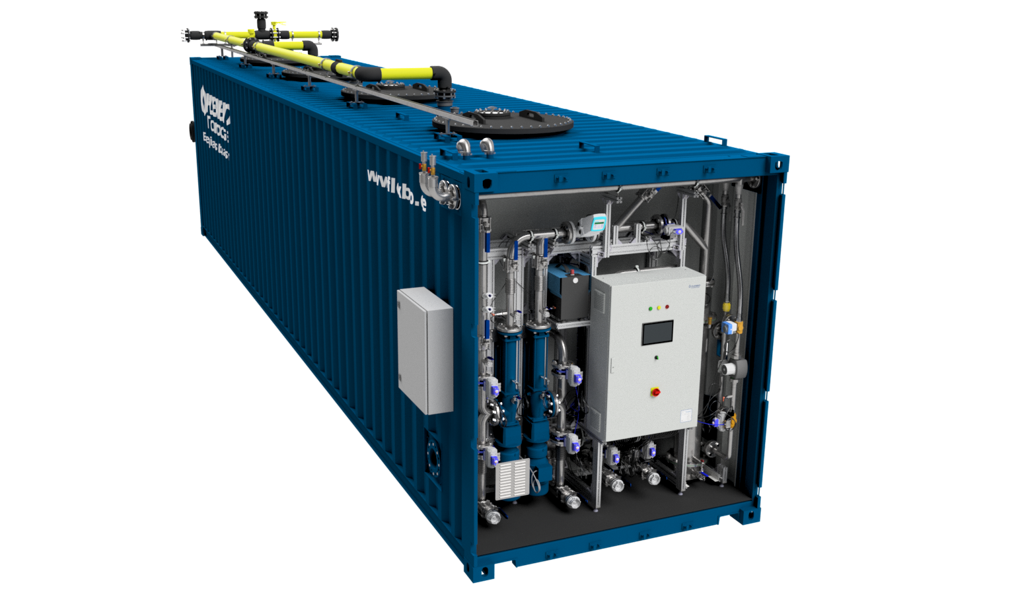

High-Performance Reactor – Compactly Integrated in an ISO Container

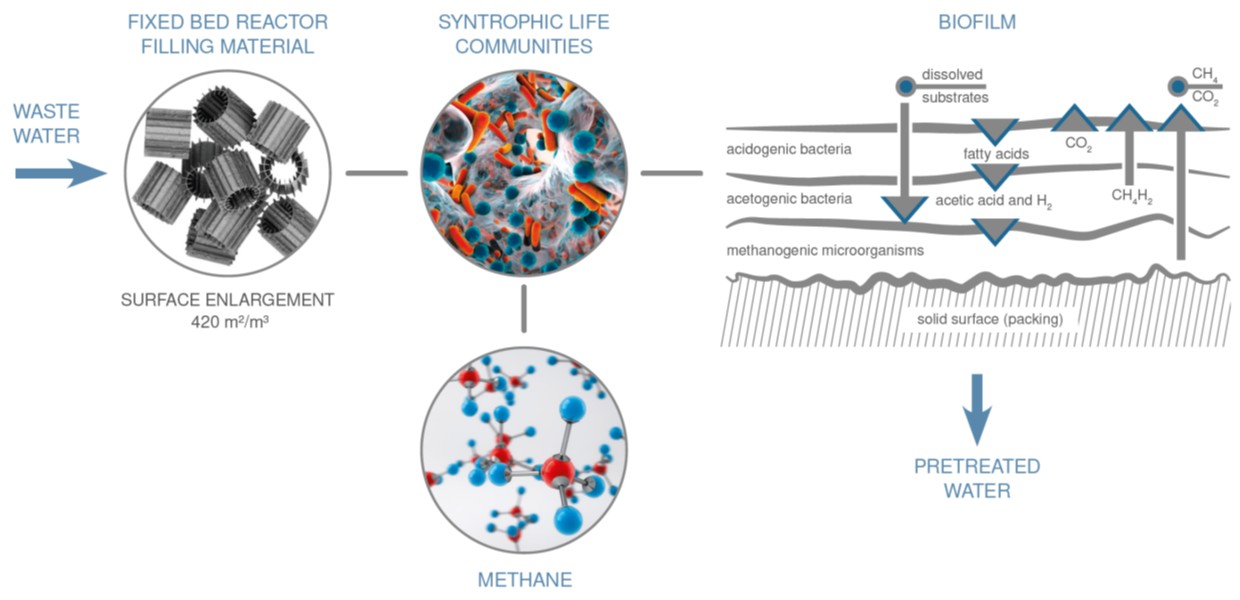

Fully insulated and equipped with all integrated components and distribution systems. The reactor features high-surface-area carrier media for powerful biological performance, grid retention for carrier elements, overflow channels, and an overflow tank with heat recovery. A complete, space-saving solution designed for maximum efficiency and reliability.

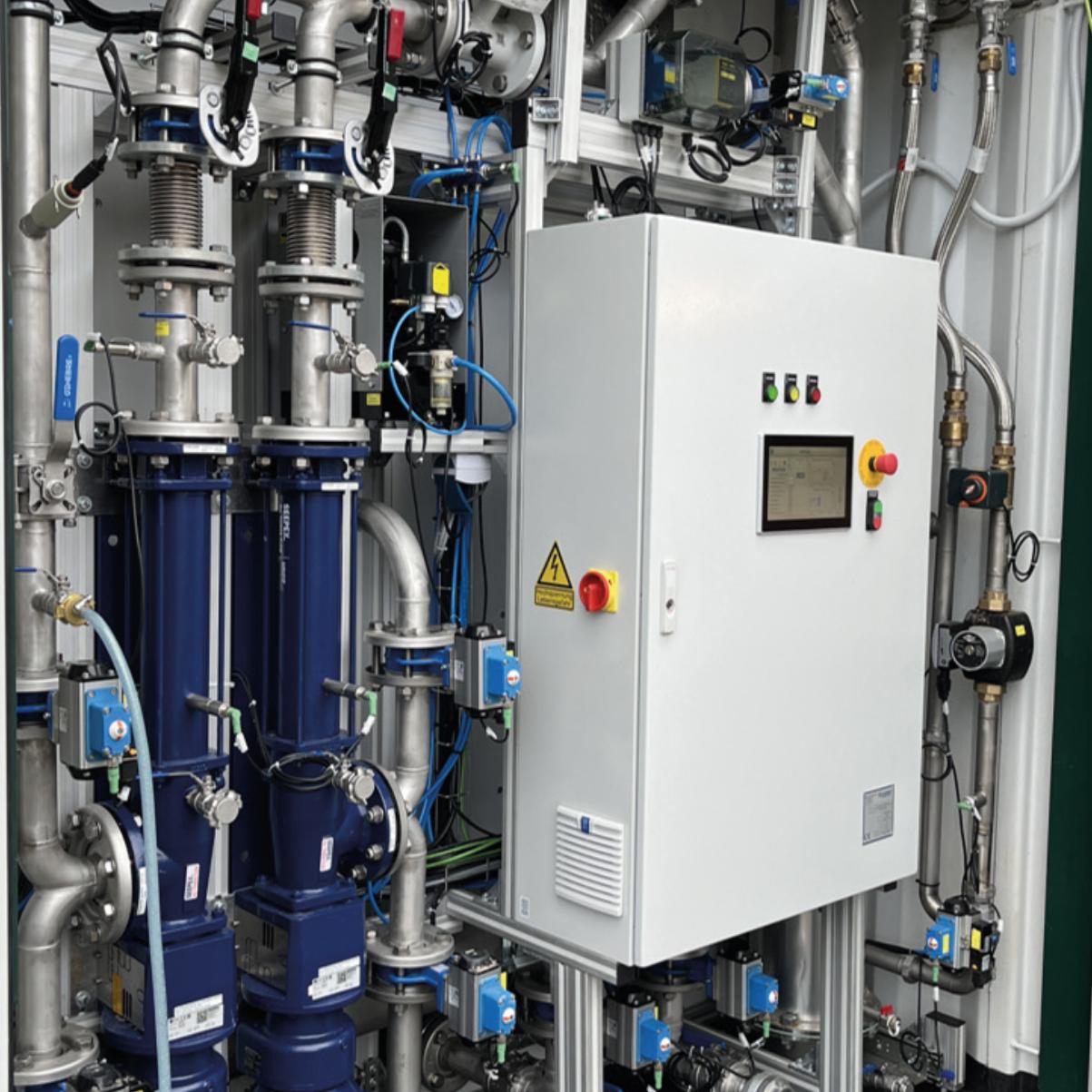

Compact Machine Room
The fully pre-installed technical room contains all key components required for wastewater treatment. Integrated wastewater pumps (redundant versions available) ensure reliable and uniform feeding of the fixed bed. Equipped with complete measuring and control technology, the machine room is compact, well-organized, and easily accessible for operation and maintenance – all in one place, delivered turnkey.
All Connections – Left or Right as Required
Flexible configuration to match your site layout: power connection, communication lines, Internet/LAN, heating, wastewater in- and outflow, compressed air, and more – neatly arranged and easily accessible.
FlexBio’s innovative system solutions – custom-tailored to meet the unique demands of industrial and commercial operations.
FlexBio’s High-Performance Biogas Plant – Maximum Efficiency, Minimum Energy Use.
Engineered for liquid substrates, industrial and commercial wastewater, slurry, and organic waste, our system delivers outstanding methane yields with minimal energy input.
With its compact modular container design, it ensures fast installation, flexible scalability, and reliable operation – even under fluctuating loads. Turn your wastewater and residues into valuable biogas: a sustainable energy source for on-site supply or grid injection.
Module Types Overview
Module Type | Flow rate (m³/h) | COD Load (kg/d) | Gas Production (m³/h) | Shipping Size (m) |
|---|---|---|---|---|
AF-50.HC | 4 | 300 | 3.7 | L 6.5 x W 2.5 x H 3.2 |
AF-100.HC | 8 | 500 | 6.2 | L 12.5 x W 2.5 x H 3.2 |
AF-180.HC | 14 | 850 | 10.5 | L 15.5 x W 3.0 x H 3.5 |
AF-320.HC | 24 | 1600 | 19.8 | L 24 x W 3.0 x H 3.5 |
Note: All specified performance values are for illustrative purposes only. The actual plant efficiency may vary depending on the industry, substrate composition, or wastewater characteristics.
FlexBio’s Innovative High-Performance Reactor — custom-engineered to meet the demands of industrial and commercial applications.
The FlexBio High-Performance Biogas Plant offers maximum efficiency in the processing of organic materials. It is specifically designed for the fermentation of liquid substrates, commercial and industrial wastewater, liquid manure, and waste fermentation. Through the use of state-of-the-art technology, high methane yield is achieved while simultaneously maintaining low energy consumption.
The compact, modular container design enables quick installation, scalable capacity as needed, and reliable continuous operation, even under highly fluctuating loads. This transforms wastewater and residual materials into valuable biogas — a sustainable energy source for self-supply or feed-in.
